Procedural Sun Surface — UE5 HLSL Compute Shader

§ 01 Physical-Based Sun on Unreal Engine

This post covers an ongoing R&D project: a no-texture, physically-based sun surface plugin for Unreal Engine 5.7. The goal was not to make "a nice-looking sun" — it was to build a system where every visual parameter is grounded in solar_physics and expressible as math, not painted by hand.

I am documenting this process in real-time. As the project progresses, this report will be updated to reflect the evolving C++ architecture and the math driving the solar photosphere.

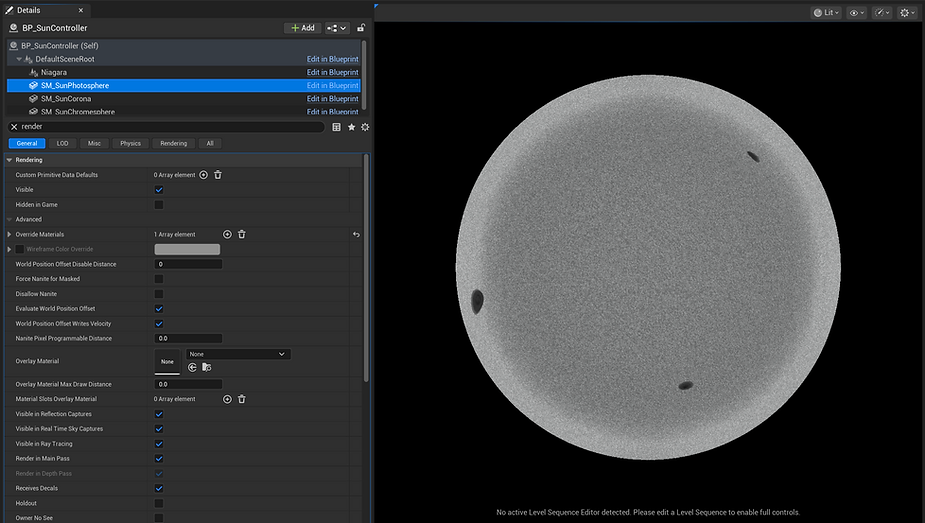

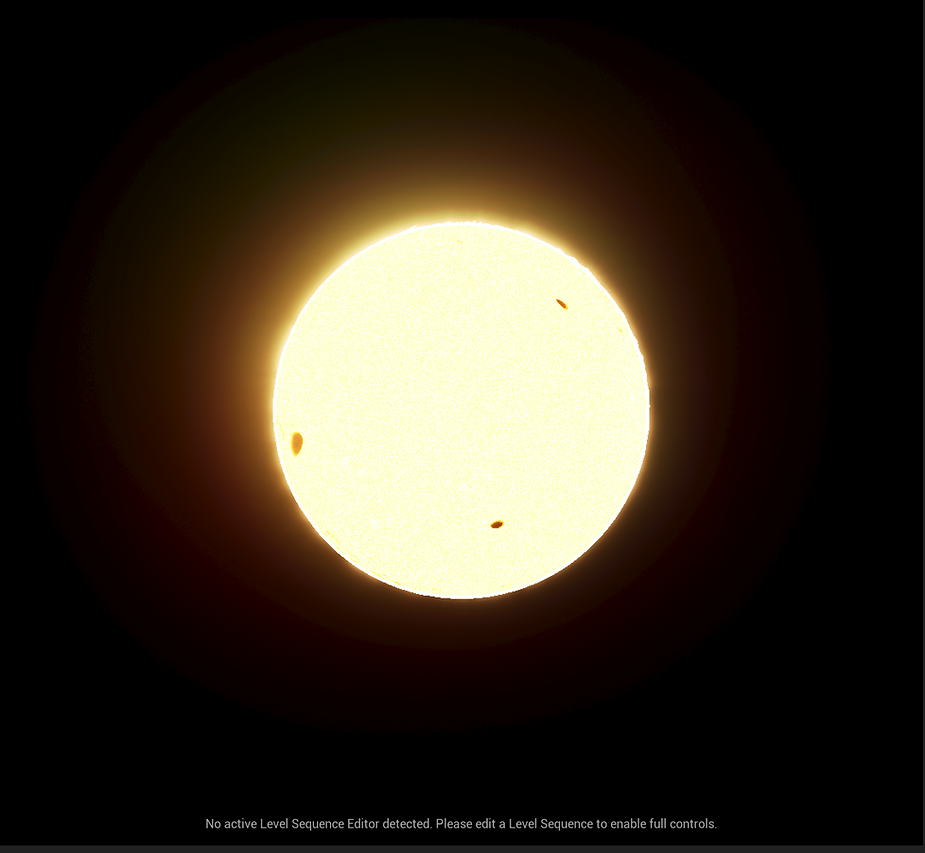

Fig 01: Unreal RAW alpha footage — photosphere surface with granulation and sunspots.

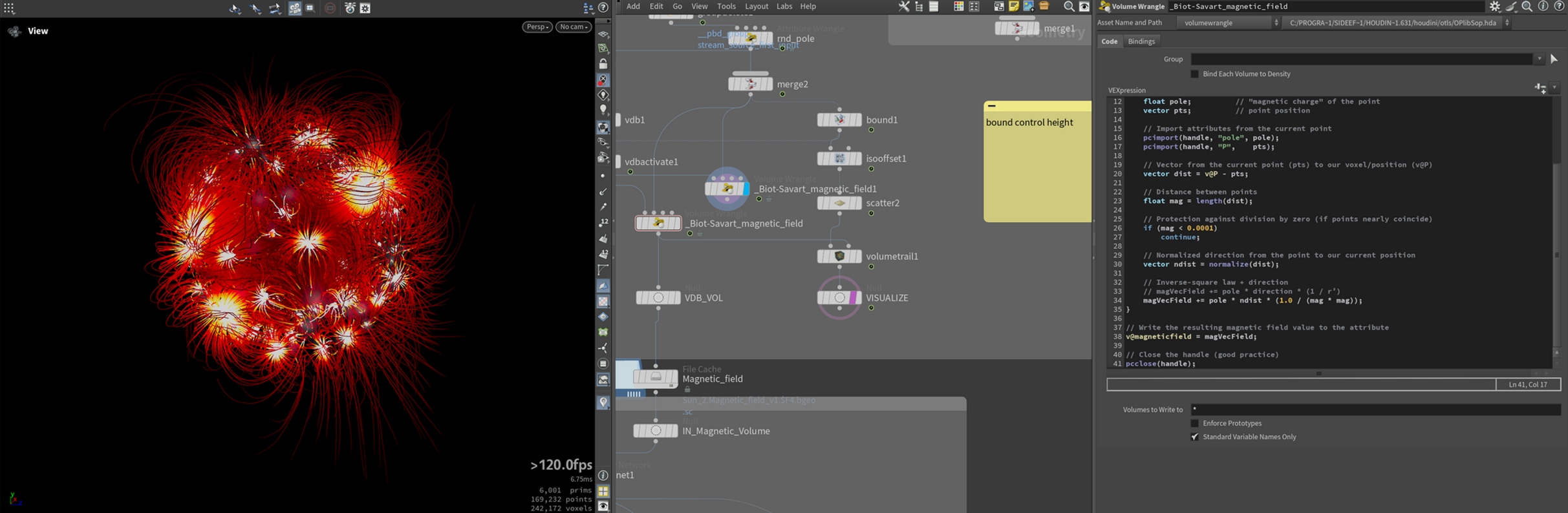

Fig 02: Houdini Prototype — Biot-Savart magnetic field simulation used as reference for the GPU compute shader.

> Why Not Use Textures?

Procedural generation from first principles costs more in ALU, but gives you a system with actual degrees of freedom. Change the temperature range — the color responds via a blackbody curve. Change the spot seed — the magnetic topology changes, and so does the chromosphere above it, and the corona loops above that.

That's the architectural bet: pay the compute cost upfront, gain full physical controllability downstream.

§ 02 Plugin Architecture: UE5 HLSL Compute Shaders

The system is split across three layers: a C++ ownership layer, a GPU compute pipeline, and an HLSL material library. Data flows strictly downward — the CPU dispatches, the GPU executes, the material assembles.

§ 03 Geometric Layering

The solar body is simulated using three concentric spherical meshes. This cross-section illustrates how the volumes are nested to provide the necessary spatial depth for the photosphere and atmospheric effects.

§ 04 The HLSL Layer Stack: UV Contract

Spatial synchronization across all three atmospheric shells is maintained via a Canonical UV Derivation. This ensures that magnetic field data aligns perfectly between the photosphere and the outer corona.

← Prev

HLSL Module reroute

1 / 2

Next →

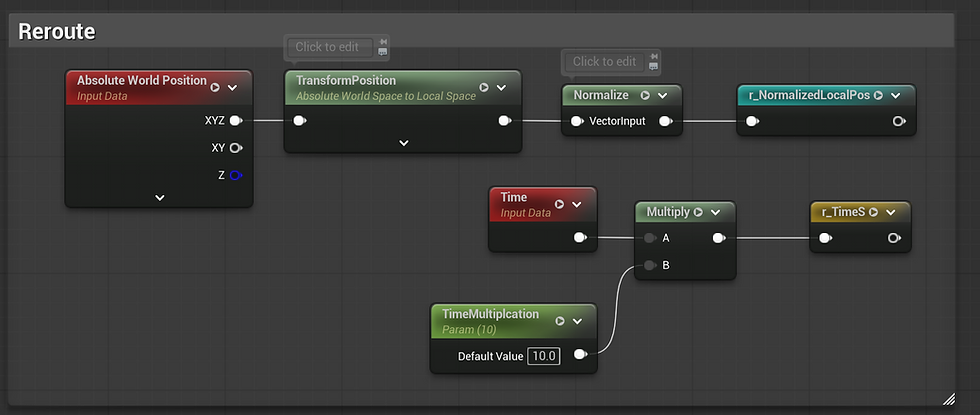

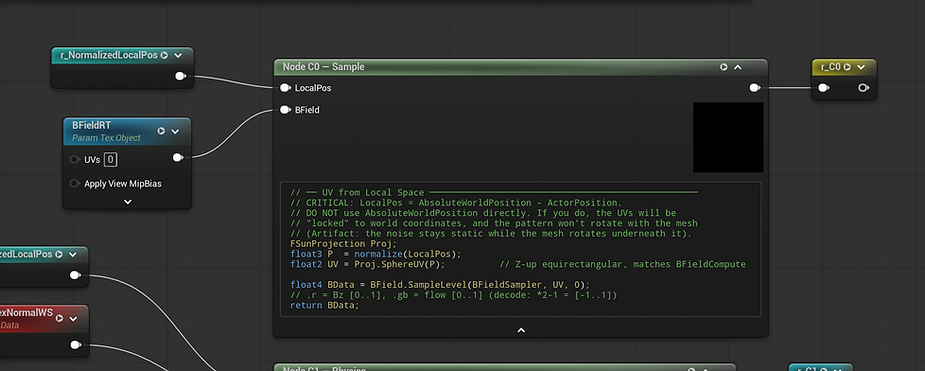

Gallery 04: Modular HLSL system — material graph reroute node and .ush include structure.

§ 05 Layer 1: Photosphere — Granulation

Hot plasma rises through the solar interior and forms convective cells — granules. Cell centers are bright and hot; boundaries are dark and cool — descending, spent plasma. Mathematically this is inverted Voronoi F1 with domain warping:

The exponent k ∈ [2, 4] shapes cell interiors — wider flat tops, sharp dark boundaries. The Curl Noise warp (SunFlow.ush) ensures cells deform and push each other organically instead of simply blinking in and out.

+ Physical Brightness Mapping

+ Live Shader Preview

+ HLSL Implementation

// SunGranulation.ush — Granulation_V08
// Inverted Voronoi F1 + domain warp via curl noise

float2 warpedUV = SunUV + CurlNoise(SunUV * WarpScale + Time * WarpSpeed) * WarpIntensity;
float2 voronoi  = VoronoiF1F2(warpedUV * GranuleScale);
float  F1       = voronoi.x;
float  F2       = voronoi.y;

// Invert F1: bright centers, dark boundaries
float cell   = pow(saturate(1.0 - F1), GranuleExponent);

// Intergranular lane glow: F2-F1 peaks between cells
float lane   = saturate((F2 - F1) * 3.5);
float bright = lerp(0.78, 1.12, cell) + lane * 0.05;
// bright ∈ [0.78..1.12] → feeds temperature pipeline downstream

Fig 05: Procedural sun surface simulation using UE5 HLSL Compute Shaders and Niagara.

§ 06 Layer 2: Sunspots — Magnetic Suppression

Sunspots are regions where concentrated magnetic flux suppresses convection. Temperature drops from ~5800K at the photosphere to ~3800K in the umbra — dark not because they are painted dark, but because they radiate less energy per unit area.

Spot positions are generated on CPU (GenerateSpotPositions()) with a deterministic RNG from a seed. Each spot is stored as FVector4f(U, V, Radius, Polarity). Polarity alternates following Hale's Polarity Law.

In the compute shader, each pixel accumulates magnetic field contributions from all spots using a Biot-Savart approximation:

// SunBFieldCompute.usf — GPU Kernel
// Accumulate Bz from all spot dipoles

float Bz = 0.0;
for (int i = 0; i < SpotCount; i++)
{
    float2 delta  = UV - SpotData[i].xy;          // UV distance to spot center
    float  r2     = dot(delta, delta);
    float  R2     = SpotData[i].z * SpotData[i].z; // spot radius²
    float  polarity = SpotData[i].w;               // +1 or -1 (Hale's Law)

    Bz += polarity * R2 / pow(r2 + R2, 1.5);
}
// Write to R16F render target — sampled by material layer stack
RWMagneticField[DispatchID.xy] = saturate(Bz * FieldStrength);

← Prev

HLSL Module reroute

1 / 3

Next →

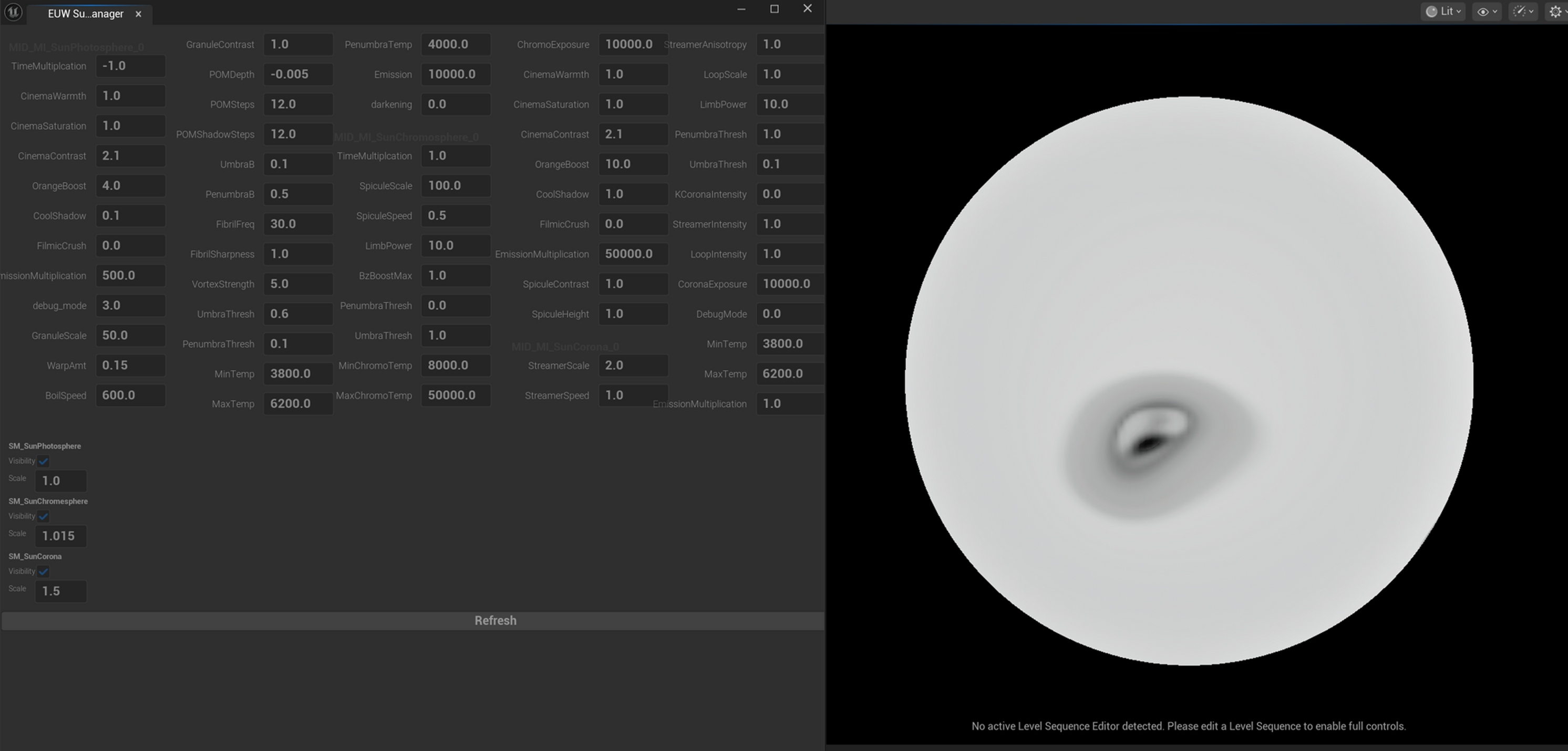

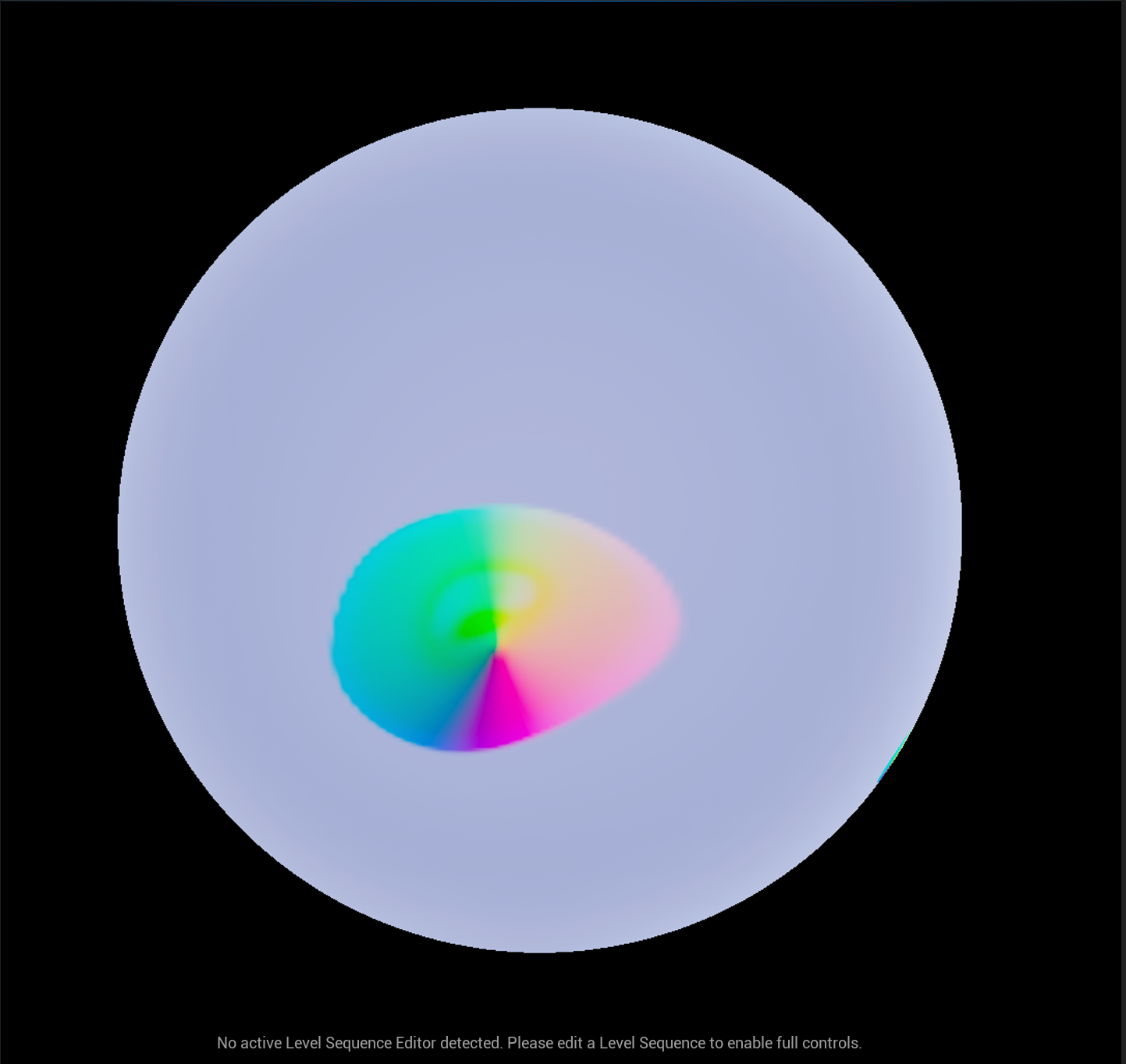

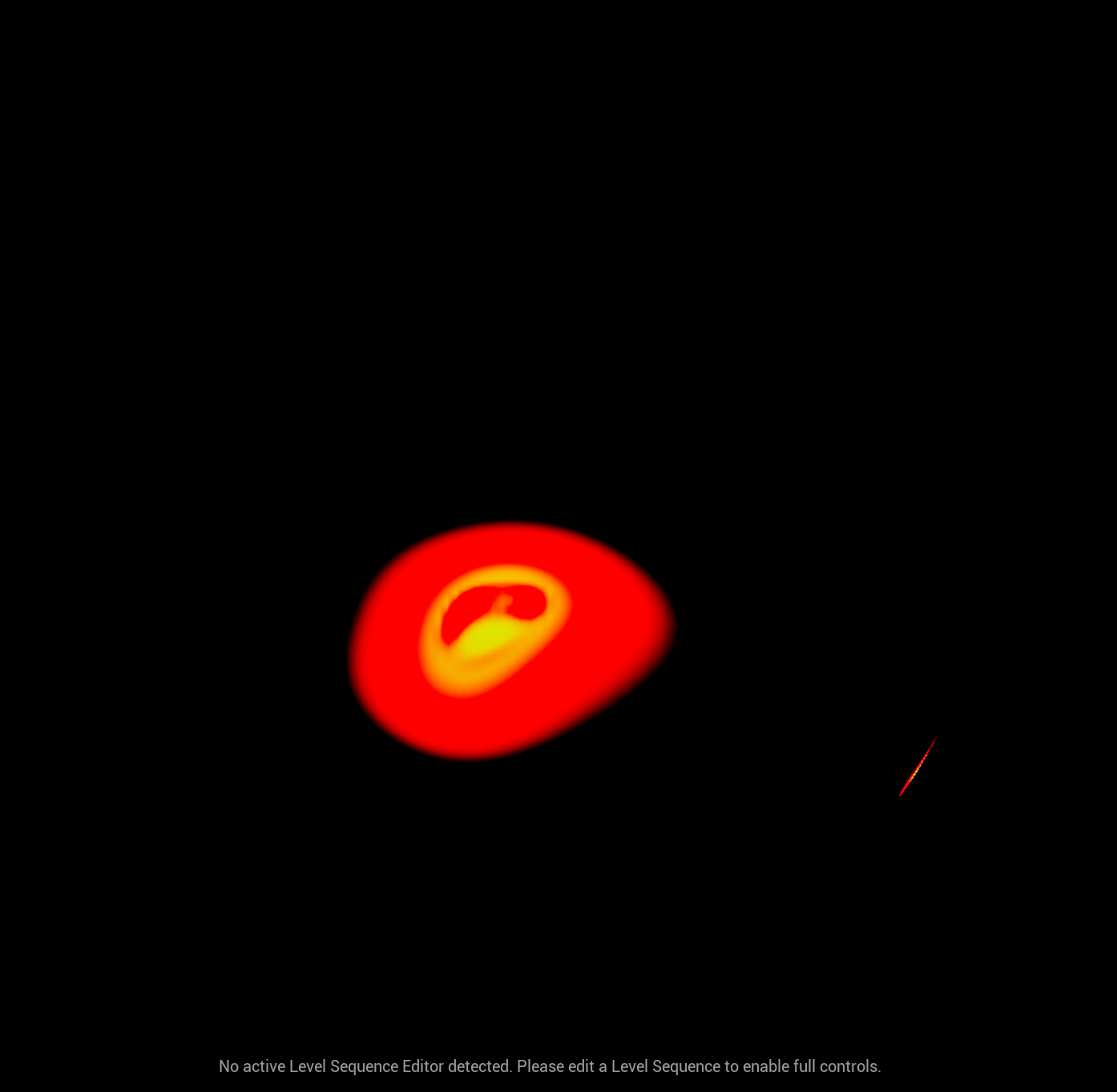

Gallery 05: Modular HLSL system — Debuging visuals.

+ Live Shader Preview

> Sunspot Fibril Structure

The penumbra is not a uniform grey ring. It's made of fibrils — dark filaments of plasma aligned along magnetic field lines that splay outward from the umbral core. Three independent fibril layers are composited via a Z-buffer winner approach:

// 3 independent fibril layers, composited via Z-buffer.
// Each layer has a different angular offset — strands interleave.
// Waviness: sin(Bz * waveFreq) — buckle frequency is higher near the umbra,
// where field lines are denser. Physically correct, not hand-tuned.

[unroll]
for (int li = 0; li < 3; li++)
{
    float lSectorF = (angle + float(li) * 0.31) * (FibrilFreq / SUN_TWO_PI);
    float lAngleID = floor(lSectorF);

    // 5 independent randoms per strand: phase, drift, depth, waviness, erosion
    float lr1 = frac(sin(lAngleID * 12.9898 + lSeed) * 43758.5453);
    float lr2 = frac(sin(lAngleID * 78.233  + lSeed) * 43758.5453);
    // ...
}

// Z-buffer winner: highest strand surface wins — produces hard occlusion
// between tubes instead of blurred sum. Makes them read as "spaghetti".

§ 07 Layer 3: Temperature Pipeline

This is where physics becomes color. Every surface region — granule center, intergranular lane, umbra, penumbra, facula — carries a temperature value in Kelvin. The pipeline in SunTemperature.ush maps that value to a physically grounded radiance output.

> Granule → Spot → Facula Compositing

Three passes composite in order: granulation sets the base temperature field, sunspot darkening suppresses it inside spot regions, faculae brighten the exterior ring. Each pass is a lerp() gated by a mask:

> Blackbody LUT Sampling

Temperature maps to color via a 256×1 BlackbodyLUT sampled at (T − MinT) / (MaxT − MinT). The LUT is baked on CPU at startup using an analytic blackbody curve (BlackbodyToLinearRGB in SunTextureHelper.cpp), normalized to linear working space — no sRGB conversion problems, no gamma drift.

> Stefan-Boltzmann Radiance Weighting

Before cinematic grade, each pixel's brightness is weighted by its temperature raised to the fourth power — matching the physical relationship between temperature and total radiated power:

§ 08 Layer 4: Limb Darkening

The solar disc appears darker at the edges because at oblique viewing angles we look through a greater column of photospheric plasma — deeper, hotter layers are hidden. This is not an artistic choice. It is a direct consequence of photospheric opacity.

The viewing angle cosine μ = dot(N_world, -V_world) drives two physical models selectable per quality preset:

§ 09 Layer 5: Parallax Occlusion Mapping on a Sphere

POM on a sphere requires latitude-corrected tangent space. A flat TBN doesn't account for the fact that a UV step at the equator covers different physical area than the same step near the poles — which causes POM to stretch at the poles and compress at the equator.

> Latitude-Corrected TBN

The corrected tangent frame in SunProjection.ush derives T and B analytically from the sphere's local position vector, then projects the view vector into that frame:

float  sinTheta = max(length(P.xy), 0.05);   // guard against pole singularity
float3 T        = float3(-P.y, P.x, 0) / sinTheta;  // dP/dU — latitude-scaled
float3 B        = cross(P, normalize(T));             // dP/dV — unit

// View vector must be in LOCAL space before projection:
float3 V_local  = mul(float4(V_world, 0), WorldToLocal).xyz;
float2 dir;
dir.x   = dot(V_local, T);
dir.y   = dot(V_local, B);
float2 offset = dir * HeightScale;

§ 10 Layer 6: Chromosphere

The chromosphere is a thin shell of hot plasma above the photosphere, visible primarily at the limb during eclipses. On the disc center it's hidden behind the optically thick photosphere — only at the limb, where we look tangentially through the shell, does it become visible.

> Fresnel Limb Gate

Fresnel opacity gates the chromosphere off the disc center and opens it fully at the limb:

> Temperature-Driven Color

Unlike the photosphere which stays in the 5500–6400K range, the chromosphere spans a much wider temperature range depending on activity level. Colors are computed analytically to support up to 50,000K — a LUT at that range would require impractical resolution:

• Quiet chromosphere (~8,000K) — H-alpha orange-red, visible as the pink ring during total solar eclipses
• Active regions (~50,000K) — EUV blue-white, corresponding to extreme ultraviolet emission from superheated plasma in flare regions

Spicules are flow-aligned anisotropic FBM, oriented by BFieldRT.gb flow vectors. World Position Offset extrudes them along the vertex normal — no additional mesh geometry required.

§ 11 Layer 7: Corona

The K-corona — the inner white corona visible during total eclipses — is not thermal emission. It's Thomson scattering of photosphere light off free electrons in the coronal plasma. The color is approximately the photosphere's spectral distribution — white — not a blackbody curve at coronal temperatures.

// K-corona: scattered photosphere light, not temperature emission.
// ThomsonScatterFactor encodes electron column density along the view ray.
float3 ScatteredColor = SunColor * ThomsonScatterFactor;

> Magnetic Synchronization

Coronal loops are gated by BFieldRT.r (Bz magnitude) — they only appear above active regions where the magnetic field is strong enough to confine plasma along closed field lines. Since photosphere spots, chromosphere plages, and coronal loops all sample the same BFieldRT, spatial alignment is guaranteed with zero additional synchronization cost.

§ 12 Cinematic Grade

Physical blackbody output for a real sun at 5778K is perceptually nearly white — correct physics, poor cinematics. A grade module (SunGrade.ush) sits between the LUT sample and the final compositor, operating entirely in linear space to preserve HDR fidelity.

§ 13 Niagara: Solar Prominences

A separate Niagara emitter system handles solar prominences — large magnetic plasma arcs above the chromosphere. The core challenge was GPU-stable particle pairing: prominences require particle pairs (arc start / arc end), and maintaining stable pairs across frames on the GPU is a non-trivial synchronization problem.

← Prev

Solar prominence arc 1

1 / 2

Next →

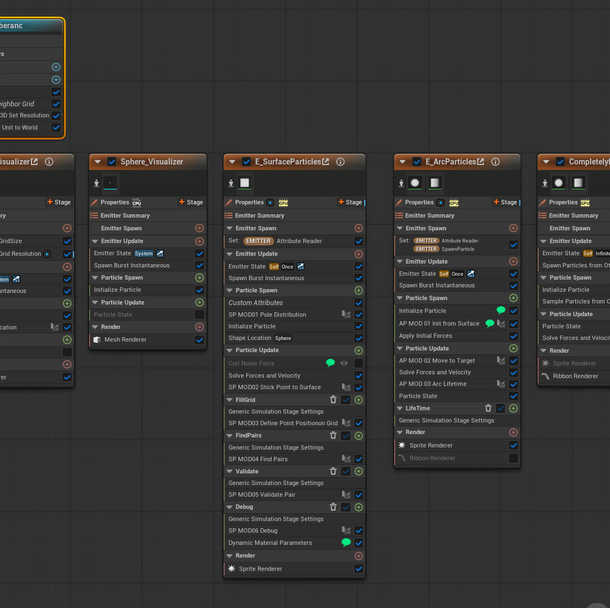

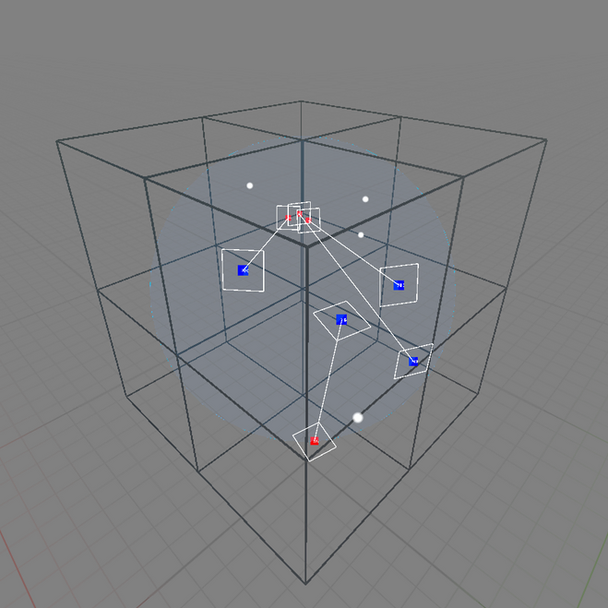

Fig 13: Niagara solar prominences — GPU particle pairing via adapted Gale-Shapley algorithm.

> Gale-Shapley Stable Matching on GPU

The solution uses an adapted Gale-Shapley stable matching algorithm across three Generic Simulation Stages:

• FillGrid — populate a NeighborGrid3D with particle positions
• FindAndPropose — each particle proposes to its nearest neighbor
• ValidateAndPair — validate mutual proposals, write stable pairs via InterlockedMin / InterlockedMax

> Compiler-Level Issues Encountered

Arc geometry is shaped via a sine-envelope lift along interpolated surface normals, with a shared RibbonID per pair for the ribbon renderer.

§ 14 Current Status
